Function

Over-Temperature Protector

Design

Normally Closed

Load:

Inductive
Resistive

A creep action thermal protector with greater current sensitivity than the Model N.  Equipped with gold diffused contacts for use in low voltage/low current applications.

FEATURES

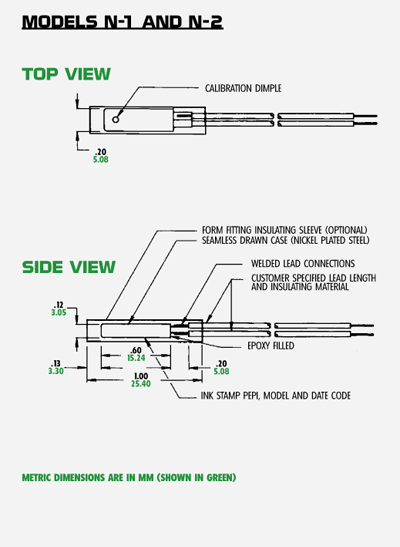

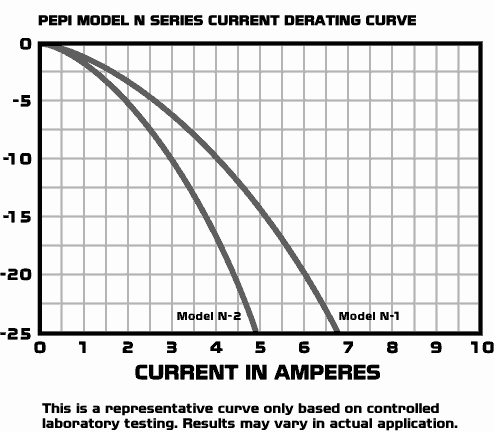

  • Conductive bimetal construction; the bimetallic element carries the circuit current for maximum current sensitivity under short circuit conditions.  Model N-2 has the highest current sensitivity in the Model N series.
  • Creep action device; no built-in differential between opening and closing.
  • Preset calibration temperature; not adjustable in the field.
  • Case electrically alive; insulating sleeving is available.
  • Equipped with gold diffused, fine silver contacts for use in low voltage/low current applications.

CONTACT RATINGS

  • 2.6 amps 120 VAC inductive
  • 8 amps 12 VDC resistive
  • 4 amps 24 VDC resistive

CALIBRATION RANGE

Model N-1 30° C to 130° C

Model N-2 30° C to 100° C
