Economical snap-action thermal protectors designed for a cost effective solution for protection in motor, transformer, and lighting applications. Plastic case requires no additional insulation materials to isolate the protector from the electrical circuit.

FEATURES

Snap-action design, quick break/quick make switching action.
Compact design with a high switching contact rating.
Conductive bimetal construction: The bimetal carries the circuit current for maximum sensitivity under short circuit conditions.
Heat resistant plastic case.

Preset calibration temperature, not adjustable in the field.

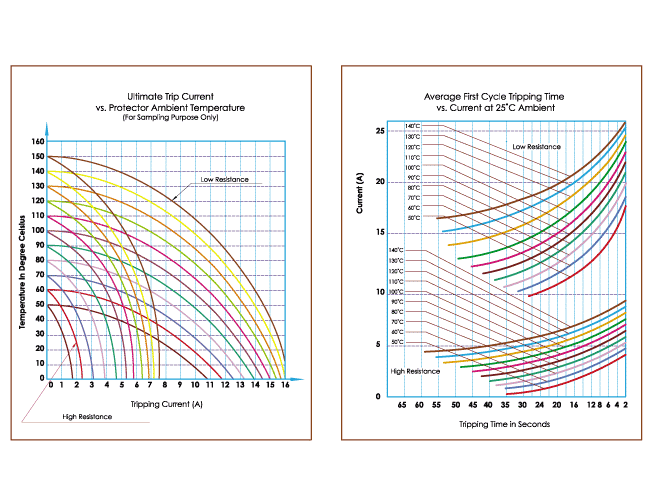

Available in a low and high bimetal resistance for optimum current and temperature sensitivity.
Suitable for vacuum impregnation processes.
