Versatile, multipurpose creep action thermostats/ thermal protectors for temperature sensing applications, heaters, motors and more. Available with gold-diffused contacts for exceptionally low contact resistance in critical low-voltage/ low current circuits.

FEATURES

Conductive bimetal construction; the bimetallic element carries the circuit current.
No built-in differential between the opening and closing temperature.
Case electrically alive; insulating sleeving is available.
Preset calibration temperature; not adjustable in the field.

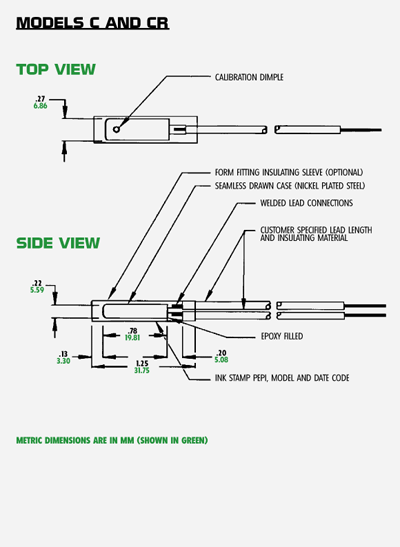

Available to open circuit on rise of temperature (normally closed), Model C; or close circuit on rise of temperature (normally open), Model CR.
Available with gold diffused, fine silver contacts for use in low voltage/low current applications.
-C and -CH versions without gold diffused contacts.
-CH and CH versions for use 130°C to 200°C.
